PRODUCT

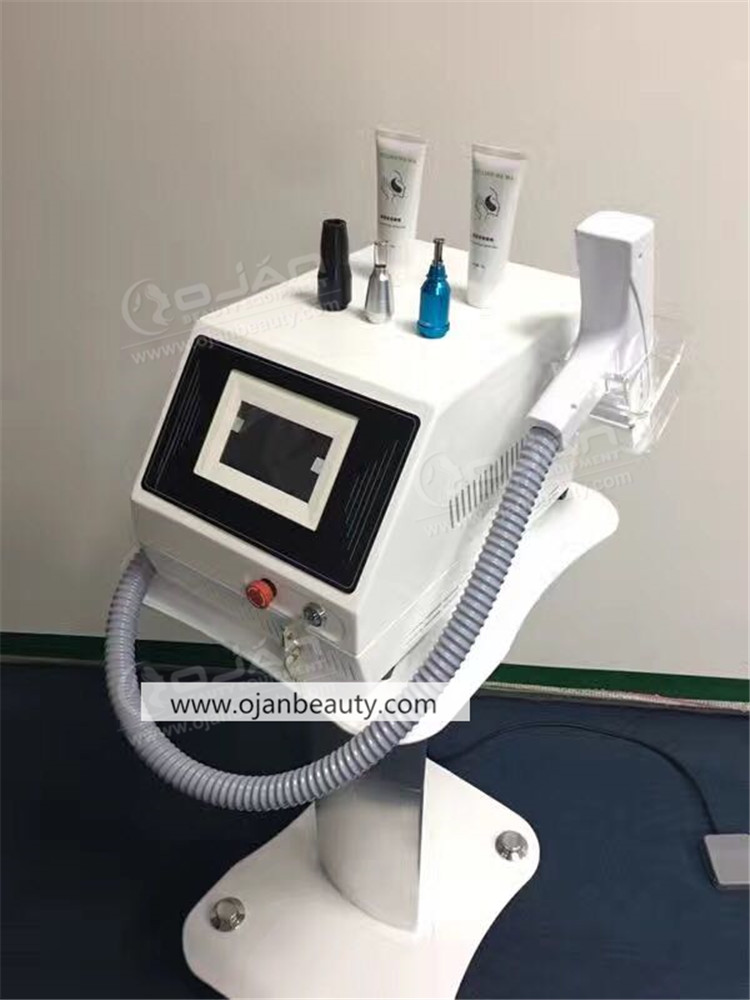

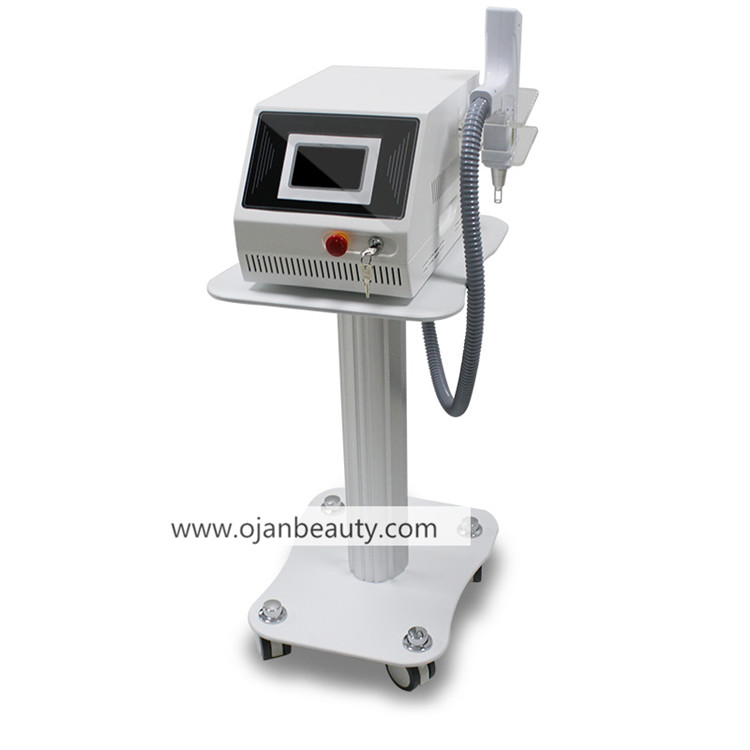

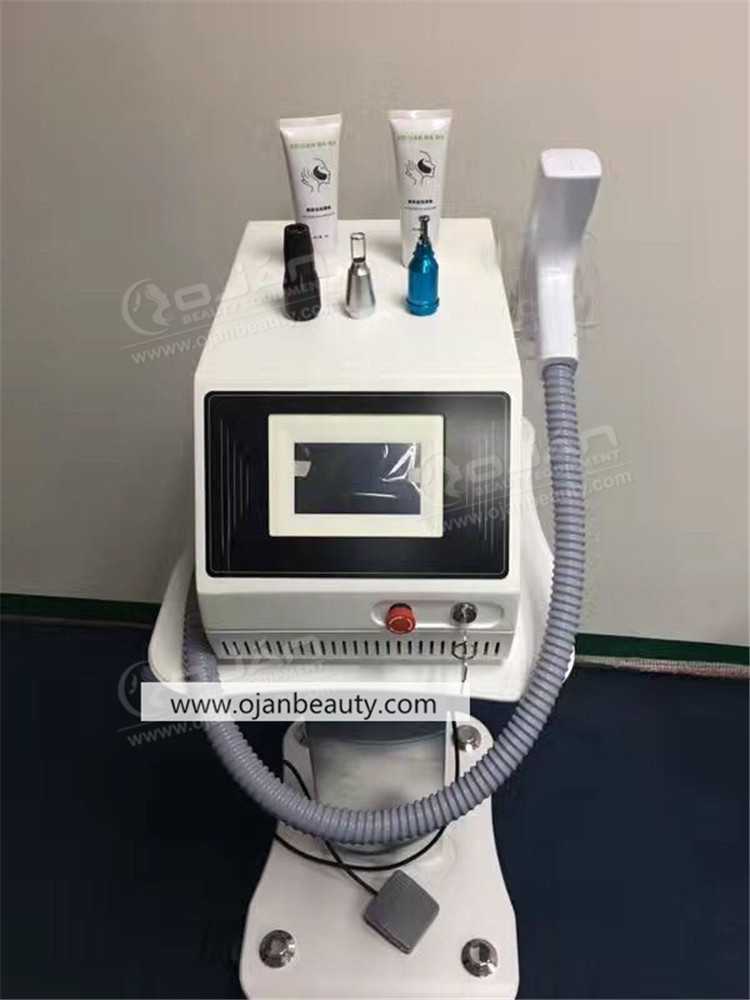

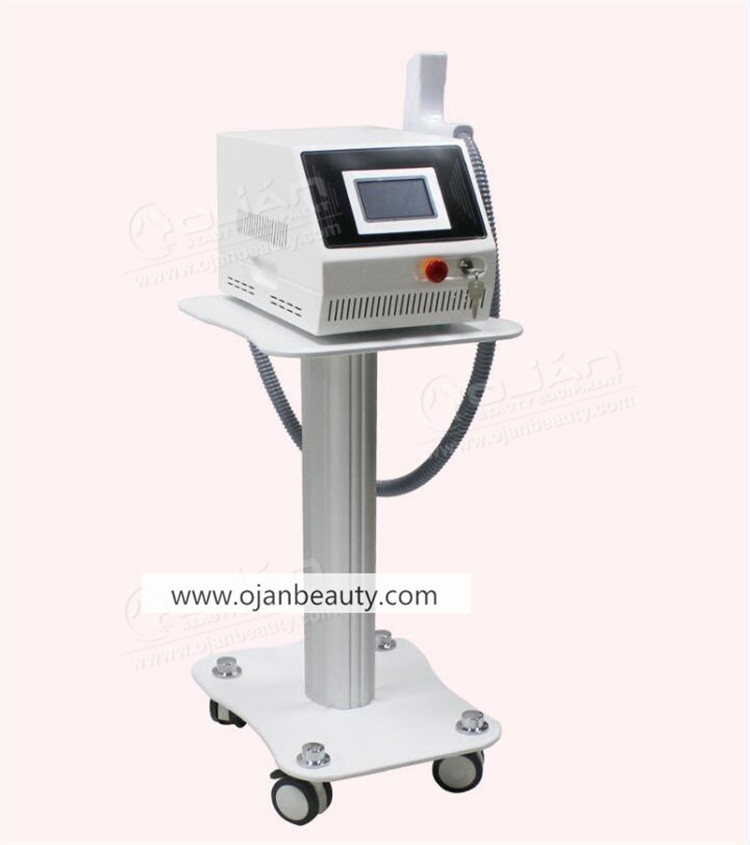

Portable new Q-witched ND YAG laser carbon gel pigmentation tattoo removal machine

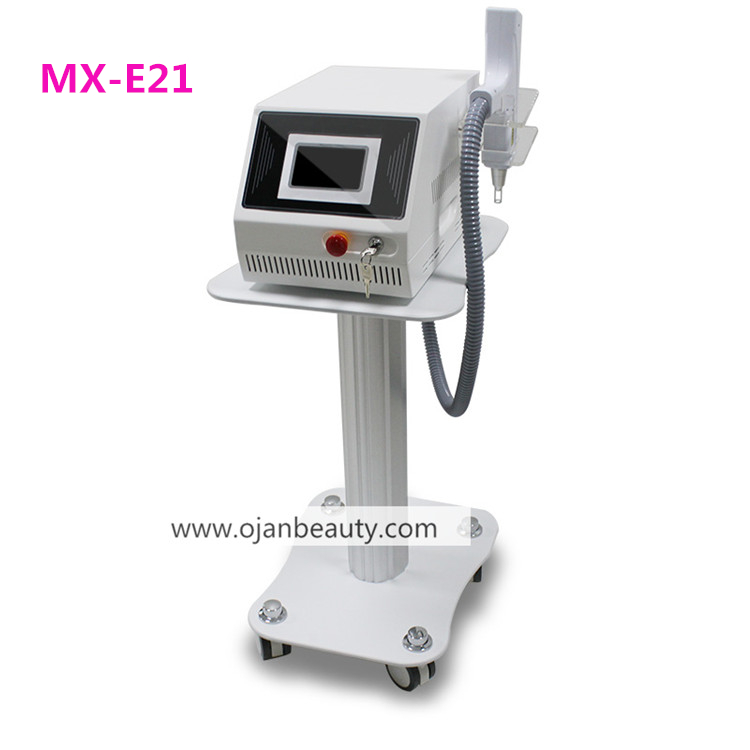

MX-E21
Machine structure
The Nd:YAG Laser Tattoo Removal System is made up of light route system, power supply system,
computer controlling system, cooling system, etc. The light route system is installed into the hand piece,
but power supply, controlling and cooling system are installed into the machine box of power supply.
Applications
1.With a strong penetration capacity, Q-switched 1064NM can reach the melanin cells
or black/blue fuel granule at the deeper level of the skin,
thereby removing tattoos in the body /eyes/eye lines,
reducing black moles and dermis pigment lesions etc.
2. 532NM can functionally remove red-color tattoos in the body or in the lips, remove red-moles,
and veins lesions etc. In addition, with its light penetration, it also can be used to remove birth-mark,
freckles, splash etc.

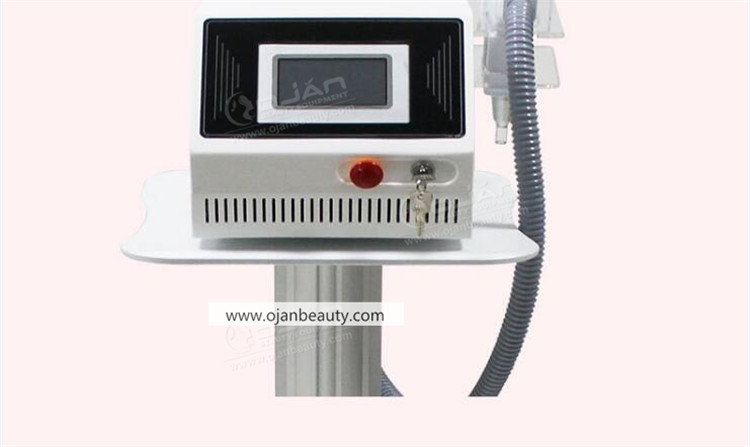

Screen :
Handpieces:
Laser model:Q-switched Nd:YAG Laser
Laser wavelength:1064/532 nm/black doll
Pulse energy: 1500mj
Pulse width:8ns
Repetition frequency:1, 2, 3,4,5, Hz
Cooling method:inner circulation water cooling
Power supply:AC110V± 10%, 50~60Hz; 230V±10%, 50~60Hz
Main physical parameters:
Dimensions:370×275×245mm3
Total weight:18kg
