208 diodes lipolaser 12pads Dual wavelength Lipo Laser with 650nm and 980nm

 12pads Dual wavelength Lipo Laser with 650nm and 980nm
 12pads Dual wavelength Lipo Laser with 650nm and 980nm
Dual wavelength Lipo Laser slimming machine
2015 newest lipo laser slimming machine
 lipo laser slimming machine
Product Name : 208 diodes lipolaser 12pads Dual wavelength Lipo Laser with 650nm and 980nm
Model Number : MX-L4
Directions

208 diodes lipolaser 12pads Dual wavelength Lipo Laser with 650nm and 980nm

 208 diodes lipo laser slimming machine (1).jpg



lipolaser 650nm and 980nm beauty machine highest energy 650 nm ~ 980 nm

Japanese "Mitsubishi" laser tube

208 diode lipolaser 12 probes 8 big 4 small



Theory of Lipolaser



The main role of the low-energy laser bio-stimulation (Bio stimulation), that is, through the give appropriate energy to stimulate the biological cells and induce or strengthen a number of physiological responses, including to promote local blood circulation, regulate cell function, enhance immune function, promote cell metabolism and proliferation.



Wavelength of 650nm-660nm red laser just in human eye color of the visible spectrum, so we can see the red light 650nm -660nm can penetrate the organization up to 8-10mm, the effective activation and repair cells, stimulate the synthesis of cell metabolism, for the superficial cells biochemical stimulation and hyperemia. Irradiation meridian points to stimulate the meridian points related organizations, the skin tissue will not cause harm to exempt patients fear of needles, and also have the function to stimulate the meridians in a healthy way.

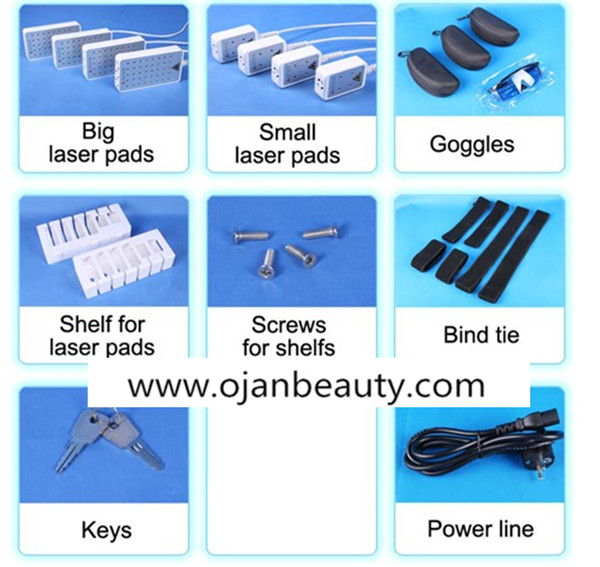

Parts Introduction

 208 diodes lipo laser slimming machine (7).jpg

208 diodes lipo laser slimming machine (5).jpg

208 diodes lipo laser slimming machine (4).jpg





Operate Interface Instruction

 208 diodes lipo laser slimming machine (2).jpg



Recommend treatment time and schedule:



Treated Body Area

Recommended Treatment Time

Recommended Treatment Schedule

Stomach, Thigh

20-30 minutes

8-12 sessions,2 per week for 4-6 weeks, each session should be followed by at least 30 minutes of cardio vascular exercise within 24 hours

Arms, Back, Buttocks,

Male Breast

15-20 minutes

8-10 sessions,2 per week for 4-5 weeks, each session should be followed by at least 30 minutes of cardio vascular exercise within 24 hours

Calves

15-20 minutes

6-8 sessions,2 per week for 3-4 weeks, each session should be followed by at least 30 minutes of cardio vascular exercise within 24 hours

Cheeks, Chin, Neck

10-15 minutes

6-8 sessions,2 per week for 3-4 weeks, each session should be followed by at least 30 minutes of cardio vascular exercise within 24 hours



Operation Process



1) Check the thickness of the fat.

2Clean treatment area; Clear the hair of the treatment area.

3Mark the size of treatment area.

4) The Lipolaser treatment, using the belt to fixed the pads on the treatment parts of body. wearing goggles and glasses.





Parameter



Main Power output

220v/110v50Hz-60Hz

Safety

On Board Diagnostics

Classification

Electrical Class II, Type B applied part

Pads

12 pcs,8 big pads and 4 small pads

Laser type

low intensity diode laser

Laser source

Mitsubishi diode laser ML101J27

Wave length

dual wavelength, 650nm and 980nm

Each lamp energy

130mW~350mW (pulse)

Quantities of lamps

208 pcs

Laser working mode

Continue and pulse

Ingress Rating

IPXO

Environmental requirement

10°C to 40°C Non-condensing

Humidities Below 75%RH

Cooling requirements

Air cooled

Gross Weight

23KGS

CE

CE WITH LVD AND EMC

Touch screen

8' TFT touch screen

Packing size

50CM*41CM*53CM
